Freedom of Movement
Top-of-head tube connection keeps air tubing out of your way, allowing you to sleep in any position comfortably.
Minimal-contact full face mask

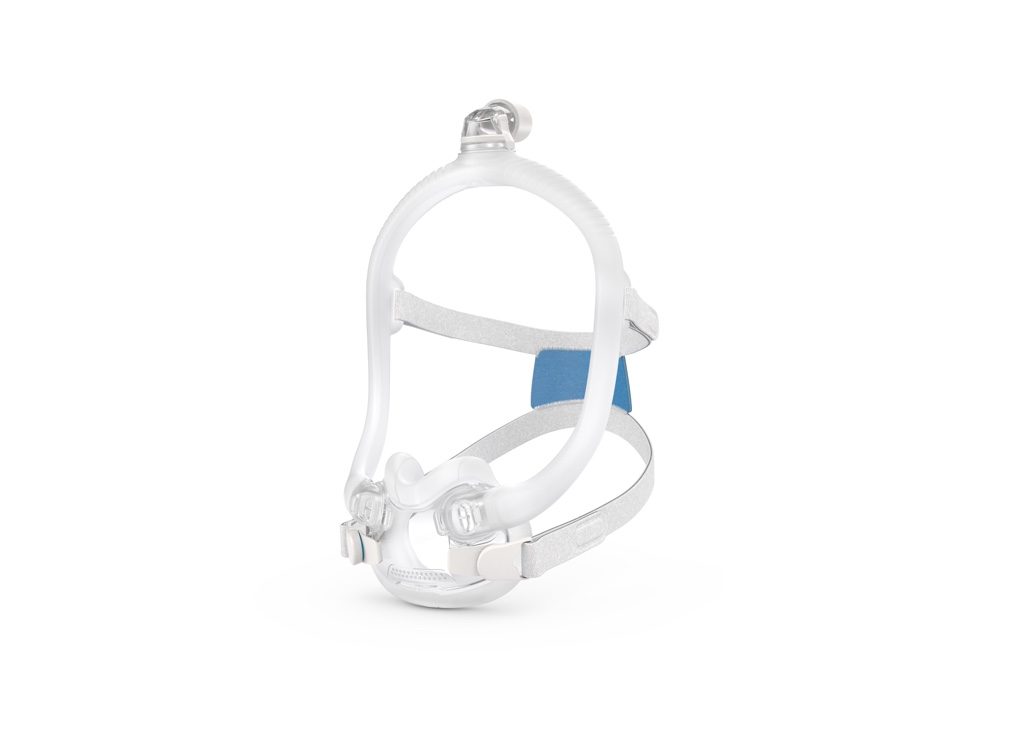

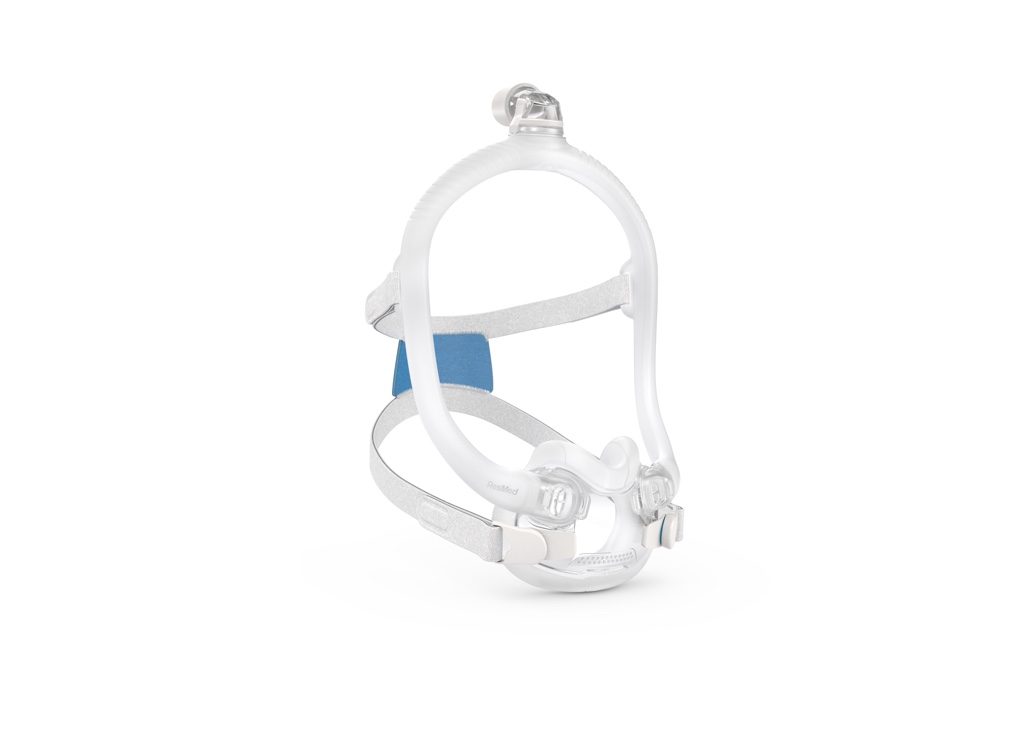

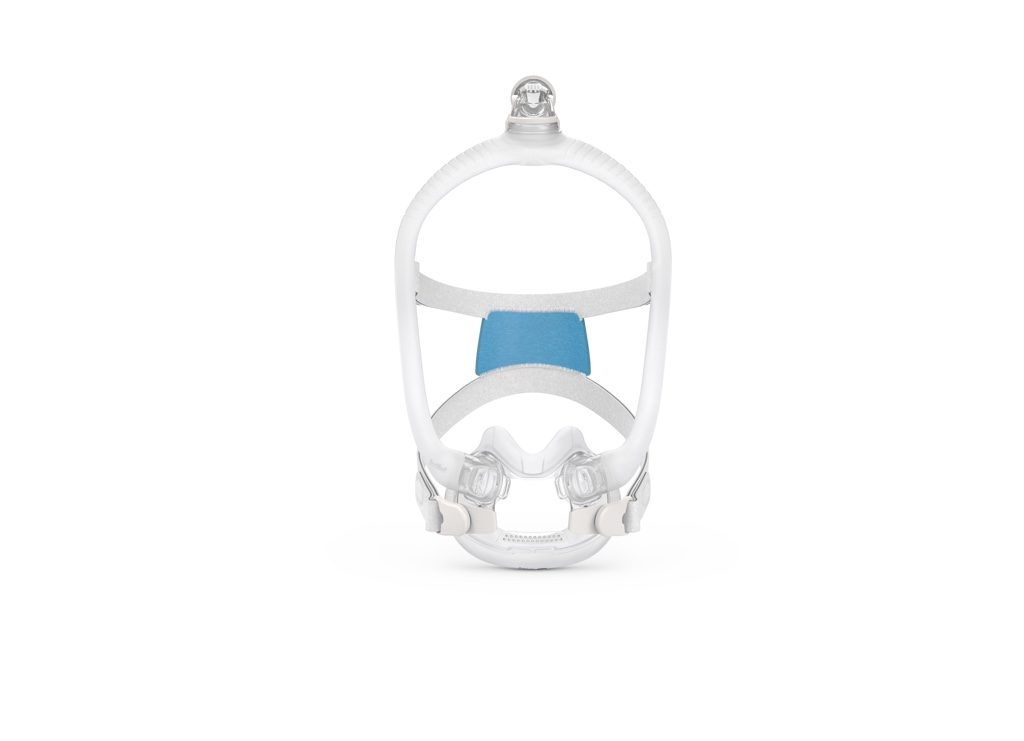

ResMed AirFit F30i
Minimal-contact full face mask designed for ultimate freedom and comfort. Features top-of-head tube connection for all sleeping positions.
Complete Mask System
Top-of-Head Connection
UltraCompact Cushion
ConnectionTop-of-head tubing
CushionUltraCompact under-nose
HeadgearMagnetic clips
Sleep styleBuilt for movement
Revolutionary design features
Freedom, comfort, and a lower-profile fit.
Experience unparalleled comfort and freedom with innovative technology designed to keep tubing out of the way and reduce contact across the face.
UltraCompact Cushion
Under-the-nose design eliminates nasal bridge pressure, preventing red marks and enhancing comfort all night.

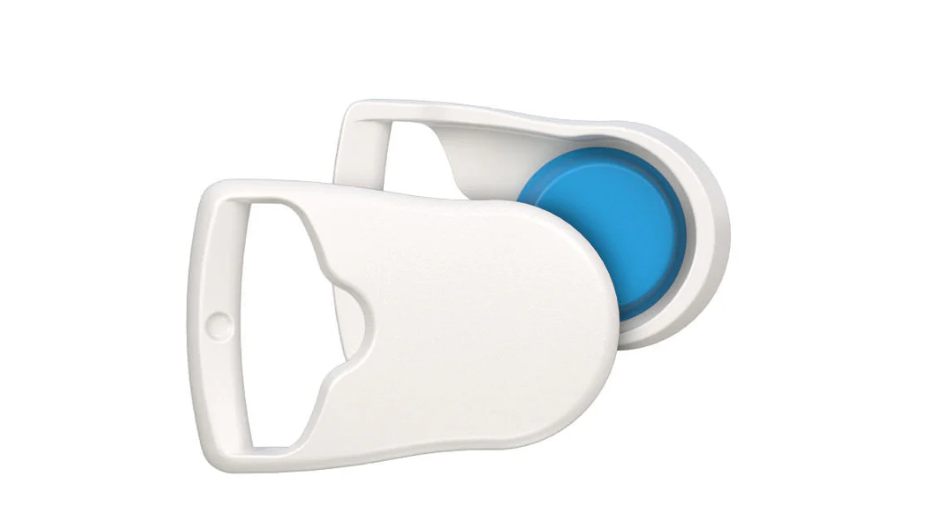

Magnetic Clips
Two-snap magnetic system makes mask removal effortless. Includes quick-release elbow for nighttime convenience.
Product videos
Fit, clean, inspect, and manage your mask with confidence.
All nine original AirFit F30i training videos remain available, organized into a cleaner product-support library.
How to put together your CPAP mask
Fitting your full face CPAP mask
Daily full face CPAP mask cleaning
Weekly full face CPAP mask cleaning
Inspecting your full face CPAP mask
Managing leaks for a full face CPAP mask
Weekly full face CPAP mask cleaning
Clean and care for your mask
Fit your mask
Technical specifications
Complete product details, compatibility, and performance.
All original AirFit F30i specification data is retained in a cleaner, easier-to-scan layout.
General Specifications
- Product NameResMed AirFit F30i Full Face Mask
- Mask TypeFull Face (Mouth & Nose)
- DesignMinimal contact, max comfort
- Target UsersMouth breathers, side sleepers
- Key FeatureTop-of-head tube connection
- Unique DesignUltraCompact under-nose cushion
- AssemblyMagnetic clips with quick-release
- ManufacturerResMed Ltd.
Sizing & Fit
- SizesSmall, Medium, Large
- Small Cushion95–115mm face width
- Medium Cushion110–130mm face width
- Large Cushion125–145mm face width
- Weight (Small)Approx. 115g
- Weight (Medium)Approx. 120g
- Weight (Large)Approx. 125g
- Fitting TemplateIncluded
Performance
- Pressure Range4–30 cmH2O
- Max Flow60 L/min at 20 cmH2O
- Dead Space< 50ml
- Leak Rate< 24 L/min
- Resistance< 0.5 cmH2O at 50 L/min
- Noise Level< 25 dBA
- Operating Temp5–40°C (41–104°F)
- Storage Temp-20–60°C (-4–140°F)
Compatibility
- CPAP MachinesUniversal fit
- BiPAP MachinesAll major brands
- Tube Size22mm standard
- Elbow360° swivel, quick-release
- Heated TubingCompatible
- HumidifiersAll CPAP humidifiers
- Tube Lengths6ft & 8ft
- Supported BrandsResMed, Philips, F&P, etc.
The AirFit F30i features a revolutionary top-of-head tube connection that keeps the air tubing completely out of your way, unlike traditional full face masks where tubing connects at the front. This design provides unprecedented freedom of movement and eliminates tubing interference during sleep.
Additionally, the UltraCompact cushion sits under the nose rather than over it, eliminating pressure on the nasal bridge and preventing red marks that are common with traditional full face masks.
Important Safety Information
The magnetic clips may interfere with certain medical devices. Keep the mask at least 6 inches (150mm) away from:
- Pacemakers and ICDs
- Neurostimulators
- Insulin pumps
- Metallic implants
Always consult your physician before using this mask if you have any implanted medical devices.
The AirFit F30i comes with a fitting template to help you select the correct size. Here's how to determine your size:
- Use the fitting template: Place the template against your face to find the size that covers your mouth and sits comfortably under your nose
- Consider your facial features: The cushion should seal around your mouth without being too tight or loose
- Test the fit: The correct size should feel comfortable without over-tightening the headgear
If you're between sizes, it's generally recommended to start with the smaller size and adjust as needed. Our team can also provide personalized fitting assistance.
Regular replacement of mask components is essential for optimal therapy and hygiene:
UltraCompact CushionReplace every 1-2 months or when you notice wear, discoloration, or reduced seal effectiveness.
HeadgearReplace every 6 months or when straps lose elasticity or show signs of wear.
Frame SystemReplace every 12 months or if you notice cracks, damage, or seal issues.
Elbow ConnectorReplace every 6 months or if the swivel action becomes stiff or damaged.
Absolutely! The AirFit F30i is specifically designed for side sleepers and all sleeping positions. Here's why it excels for side sleeping:
Top ConnectionTubing stays out of the way when you turn
Pillow FriendlyMinimal profile works well with pillows
Stable SealMaintains effective seal in any position
Daily Cleaning
- Disassemble the mask components
- Rinse all parts with warm water
- Wash with mild soap (avoid harsh chemicals)
- Rinse thoroughly to remove all soap residue
- Air dry completely before reassembly
Weekly Deep Clean
- Soak components in warm soapy water for 10 minutes
- Use a soft brush for thorough cleaning
- Rinse multiple times with clean water
- Inspect for wear, damage, or discoloration
- Ensure complete drying before storage
Important: Never use bleach, alcohol, or harsh chemicals. Avoid hot water above 140°F (60°C) as it may damage the silicone components.
